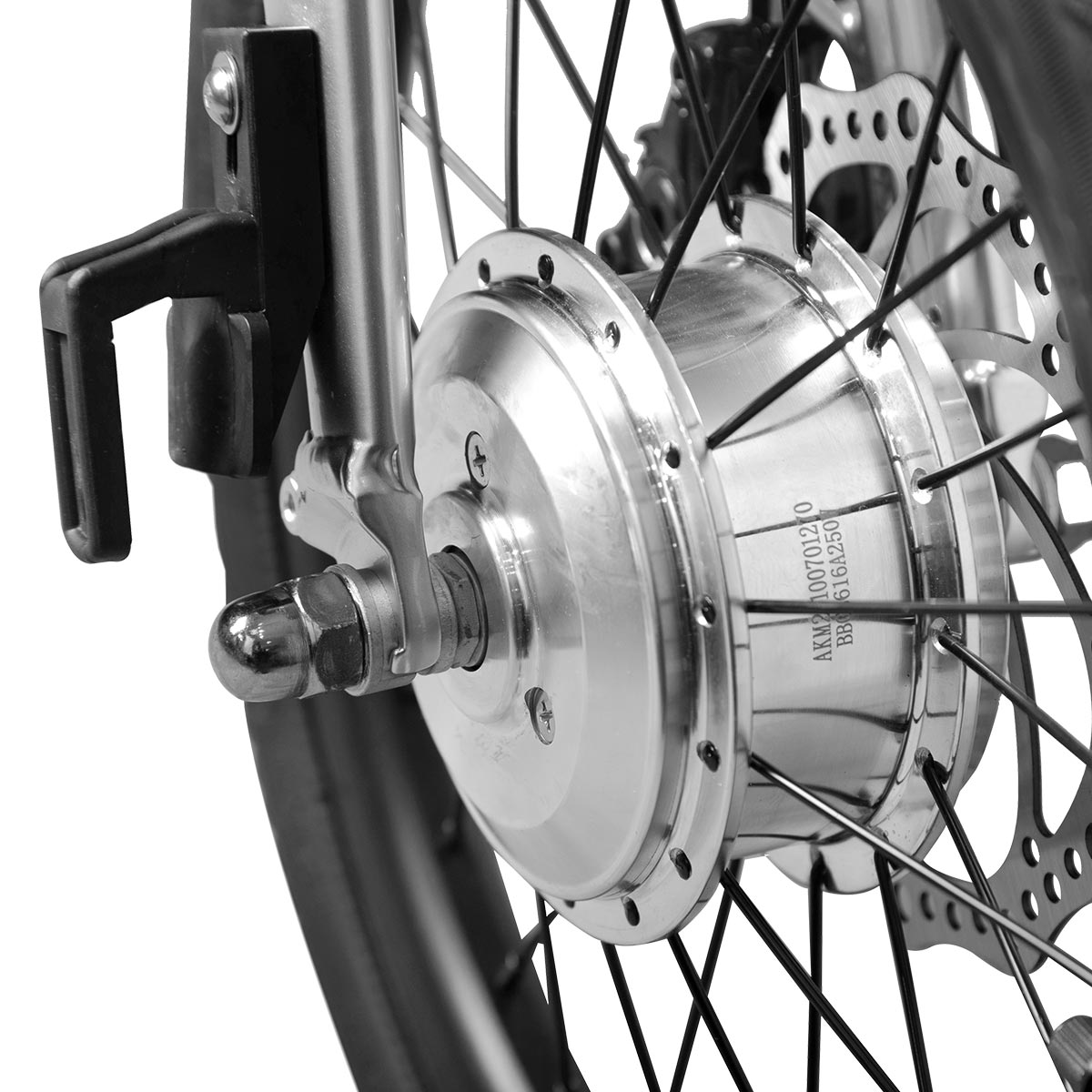

Make your ride more efficient with the Aikema 250v Electric
Motor fitted on the front hub. This powerful yet lightweight motor assists each stride of the pedal, making your cruise or
commute smoother and effortless.

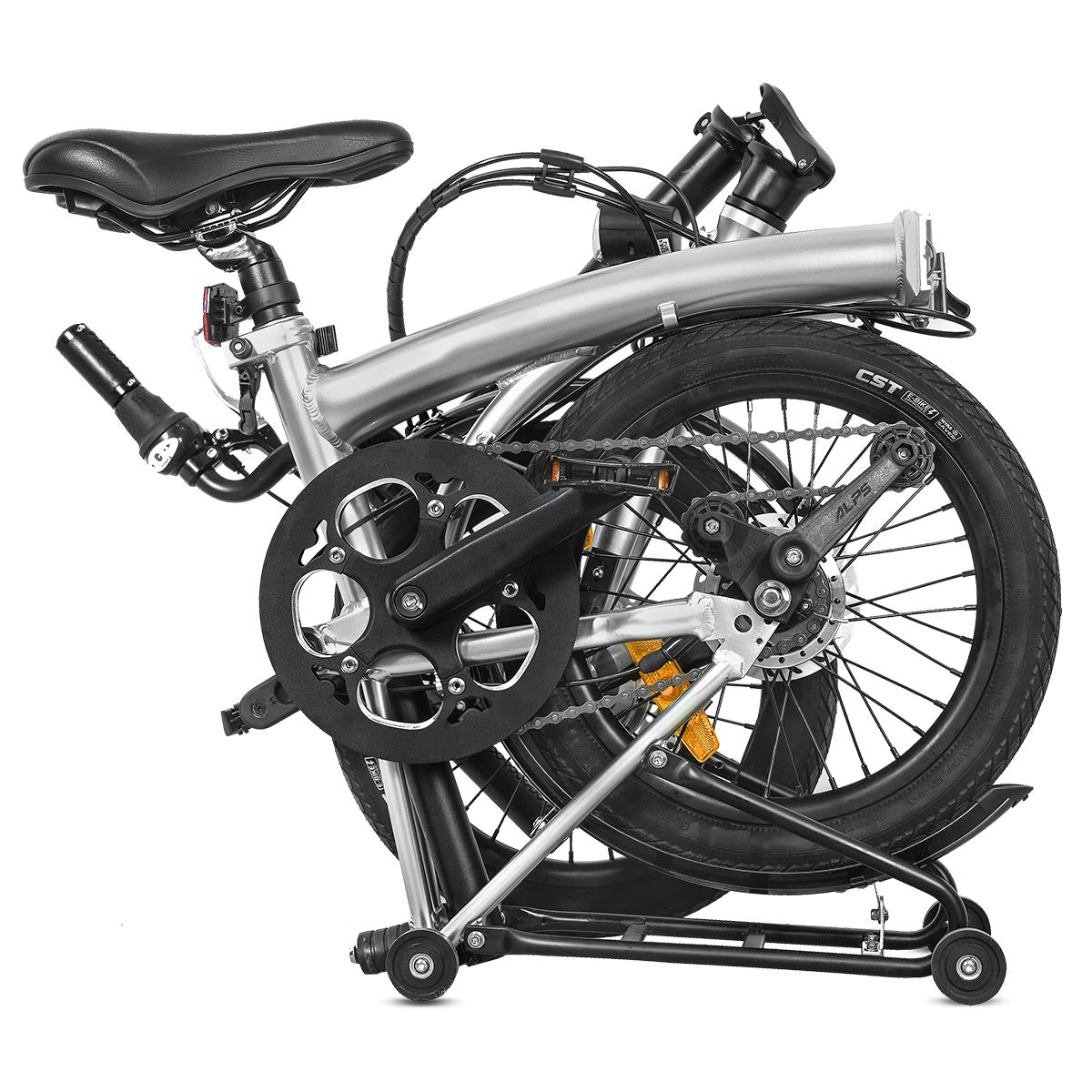

Alloy and Foldable
The Tri-Folding Alloy Frame, folding alloy pedals and Stem of the Power Shuttle makes it compact and
convenient. The alloy material offers greater durability, increasing the bike's lifespan while remaining lightweight and
offering superb handling. The Power Shuttle is designed to be folded and easily carried, making riding on public
transport or moving through unrideable terrains effortless.

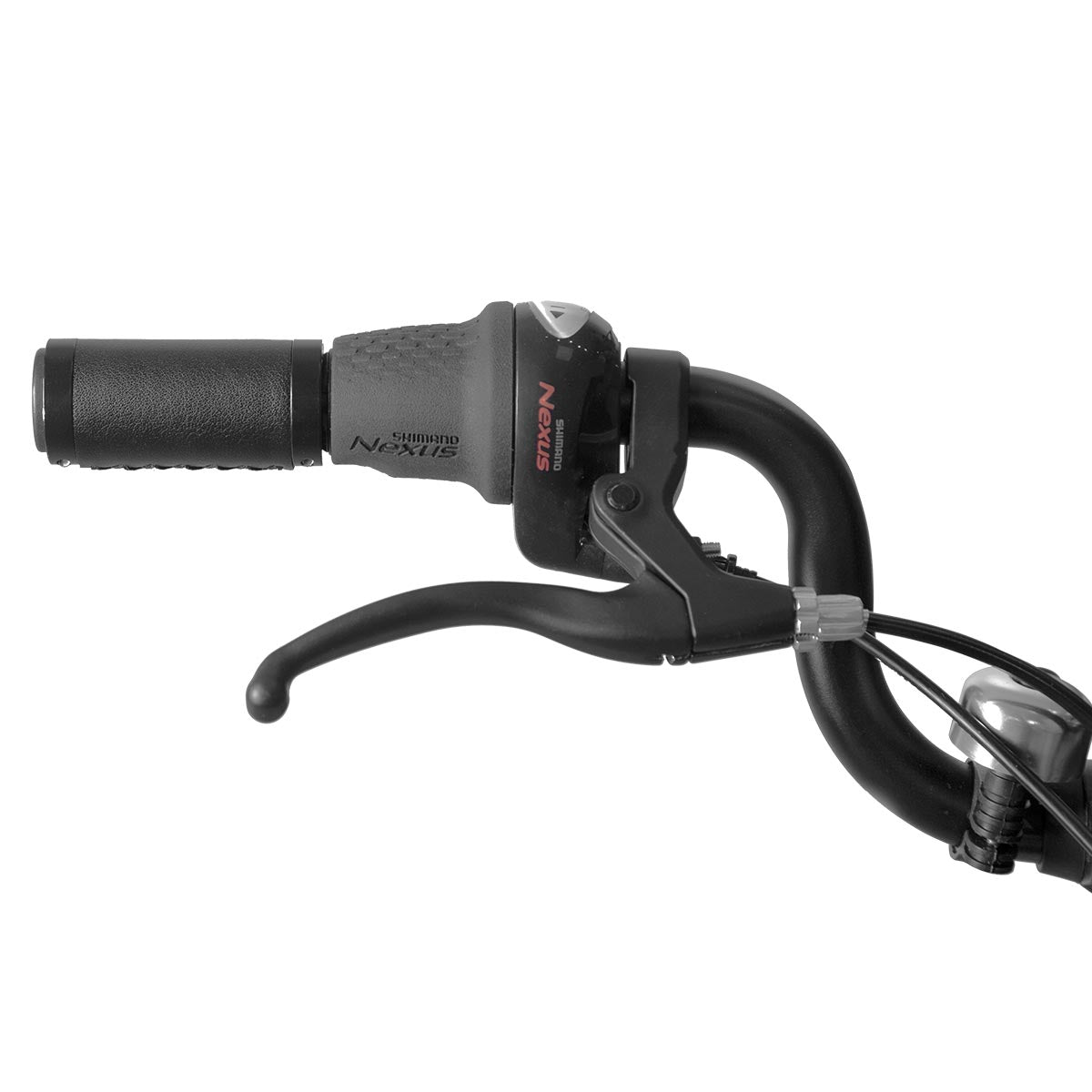

Shimano 7 Speed Drivetrain
Grip shift it super easy for every-day commuting. Our 7-Speed reliable Shimano drivetrain comes with
great gearing ratios for smooth and easy street/urban riding. We know these bikes can be folded up and tossed around so
we've chosen less intrusive, integrated grip shifters.
The Blueprints
An awesome package with the following components:
A. Tri-folding Alloy
B. Alloy 33.9 x 550mm with clamp
C. Aikema 250v Electric Motor
D. Shimano 7 Speed Drivetrain
E. 16 x 1.75 x 32h Double Wall
Specifications
Technical Specifications
Frame Size
16"
Frame
Tri-folding Alloy
Fork
AL straight leg all Alloy
Handlebar
Alloy 570mm wide
Grip
Rubber Comfort
Stem
Alloy left folding mode with double order lock
Seatpost
Alloy 33.9 x 550mm with clamp
Seat Clamp
Alloy
Saddle
Comfort
Gear Shifter
Shimano SL - C3000-7 speed
Rear Derailleur
N/A
Front Brake
Tektro MD280 mechanical with 160mm rota
Rear Brake
AL Drum type
Freewheel
Shimano 16th
Pedal
Alloy folding
Chainwheel
Alloy 165mm Crank with 52th chain wheel
Chain
1/2 x 3/32 KMC
Bottom Bracket
3 pcs with torque sensor
Headset
Steel
Front Hub
Aikema 36v 250w 28h
Rear Hub
Shimano ASG C3001-7 DBAS 32h with roller brake
Spokes
13g front/14g rear black with black nipples
Tyre
16 x 1.95 all black
Rim
16 x 1.75 x 32h Double Wall
Bell
Alloy flick
Chainguard
Round
Kickstand
NA
Rack
Alloy
Mudguards
Plastic full length
Approx. Weight
17.5kg
Electrical Components
Motor
Aikema 36v 250w 28h
Battery
Greenway 36v/6.8Ah Samsung battery core
Torque Sensor
Bottom bracket
Controller
DMHC 36v W/TC490 LCD coordination torque

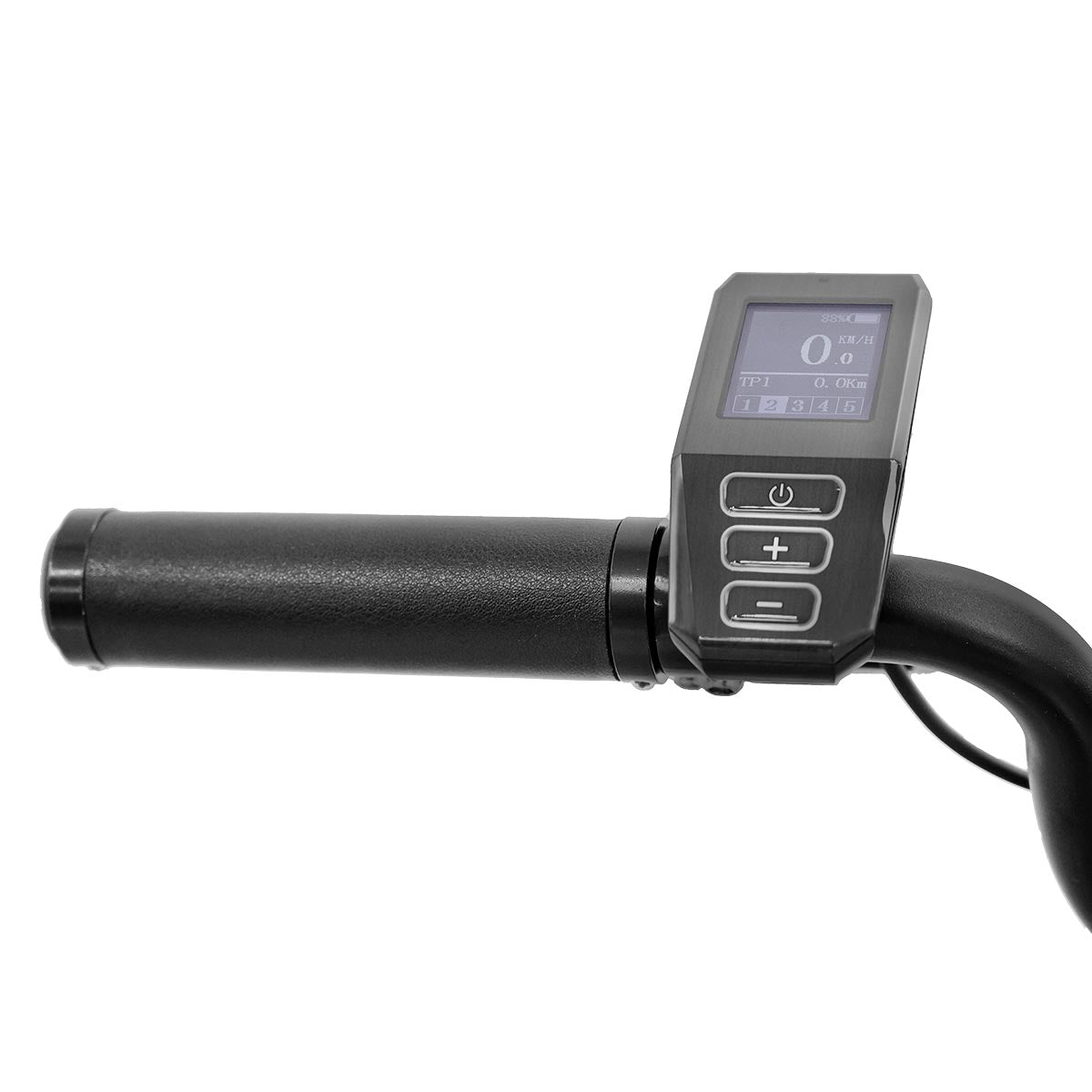

Display
DMHC 5-gear electric power adjustable, power,speed, mileage display
Charger
36V input
Front Light
QD236 2 x 150mm
Rear Light
CHP-Solar
Warranty
Lifetime warranty on Frame and Fork
12 Months Manufacturer's Warranty on all non-consumable components
12 Months Manufacturer's Warranty on all electrical components, such as motors, display or batteries.
Consumable parts (including grips, tubes, tyres, cables, brake pads, saddle coverings, chain, spokes, cassettes
and chain rings) are not covered by the warranty.
